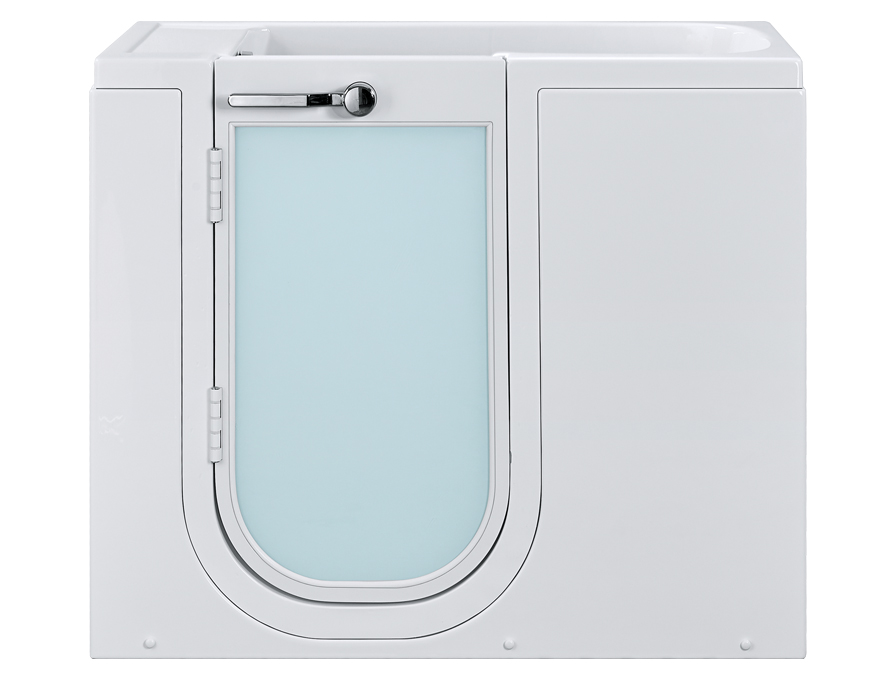

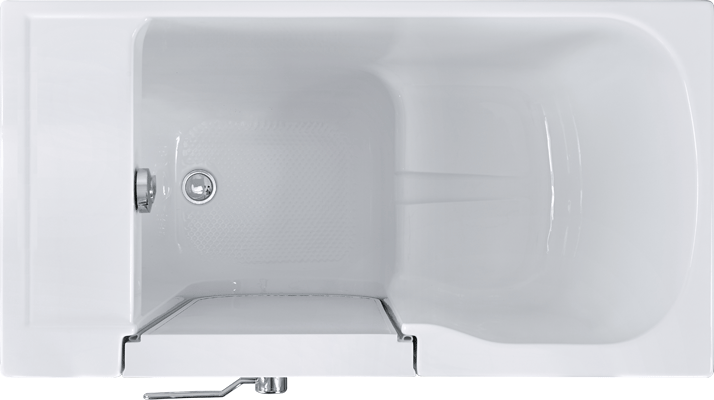

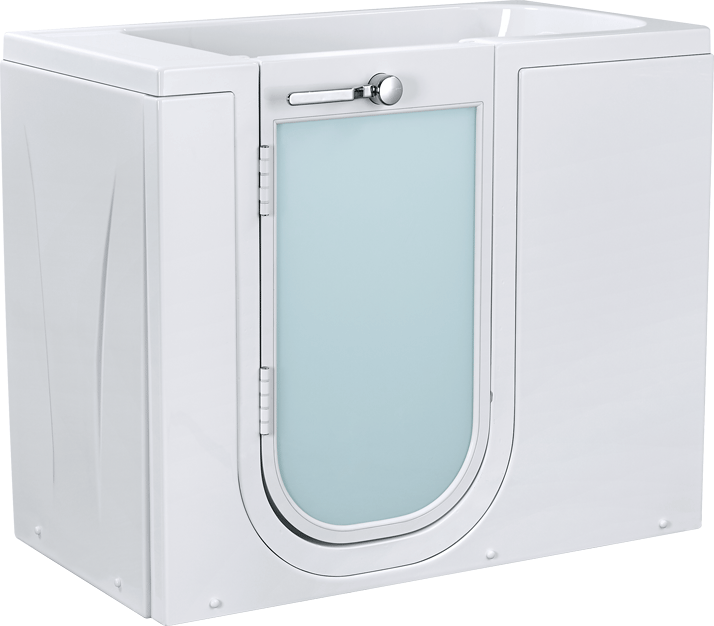

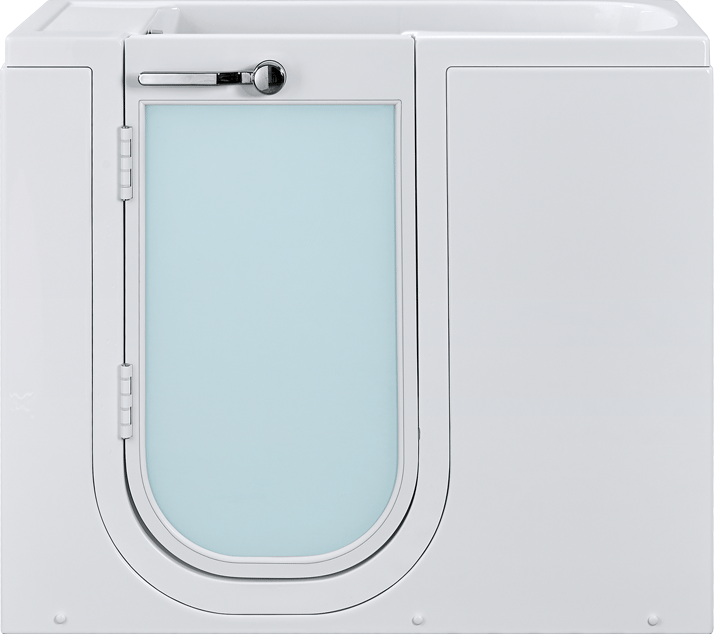

Aluminum door tub
Model: K101A
Aluminum door is new developed in the year 2017, the door shape is different from plastic door, it is another new product line.
Products in detail
lBasic information
Ø Size: 30"W×52"L×43"H

       750mm x 1320mm x 1090mm

Ø Depth: 890mm(35“)
Ø Seat height: 430mm(17")
Ø Door: Left or right hand outward swing door
Ø Major material: Acrylic, fiberglass, stainless steel frame support
Ø Color: White gloss finish
Ø Massage type: Soaking tub, hydro massage, air massage or combo massage
lStandard configuration
Ø Aluminum door frame, tempered glass exterior door panel and plastic interior door panel
ØHigh quality stainless steel frame support and fiberglass reinforcement
ØGloss white acylic surface
ØAnti-slip floor and seat
ØTwo safety grab bar
ØOverflow protective drain
ØFive pieces of roman faucet or common faucet: Cold, hot, TCV, hand mixer and spout
ØRemovable front apron and access panels, easy for maintenance and intial set up
lHydro massage function
ØBack massage: 5ea
ØCalf massage: 2x2ea adjustable jets
Ø1HP water pump
ØAir flow control for adjusting hydro massage pressure
ØOzone Sterilization : 8W/12VAC
lAir massage function
ØAir jets: 8ea
Ø400W air pump
lElectrical
ØPower supply: 2x110V/60Hz or 1x110V/60Hz or 220-240V/50Hz
ØDigital electrical topside control panel
ØMultiple color LED light: 10W/12VAC
ØBluetooth: 15W/12VAC or 15W/220VAC
ØHeater: 1500W
lWarranty
ØLifetime limited warranty on frame, door, door seal gasket and acrylic walk in tub shell
ØOne year warranty for electrical digital controller
