Wheelchair transfer tub

K201
Size:52"×29"×40"

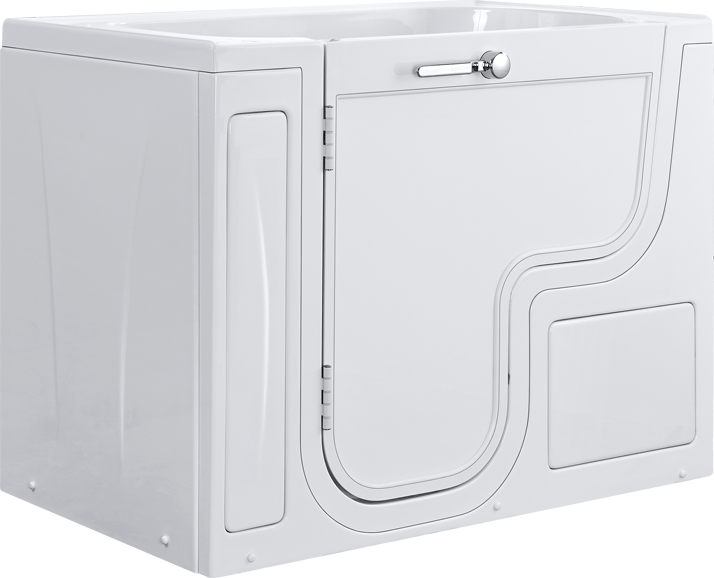

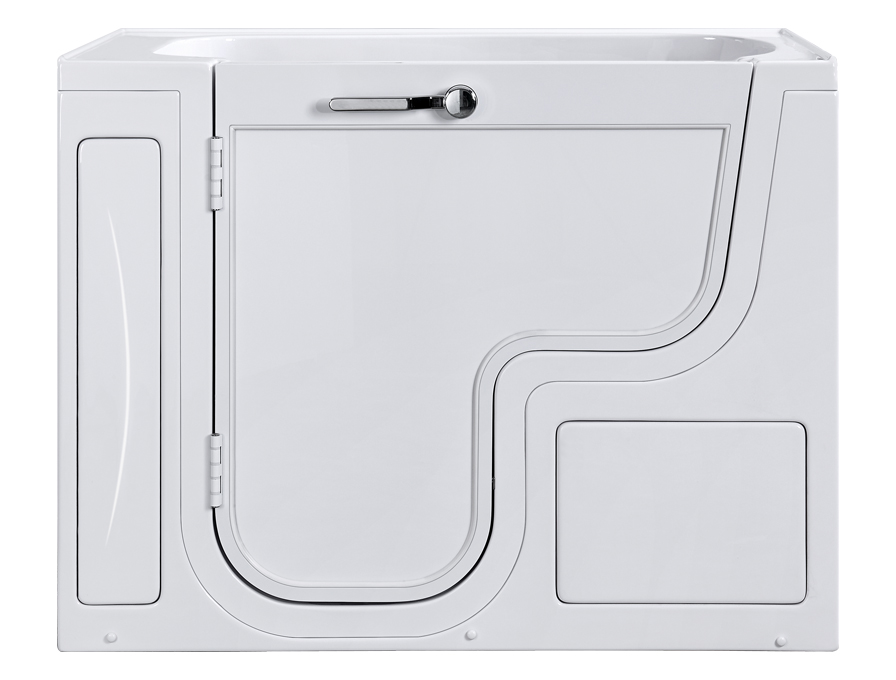

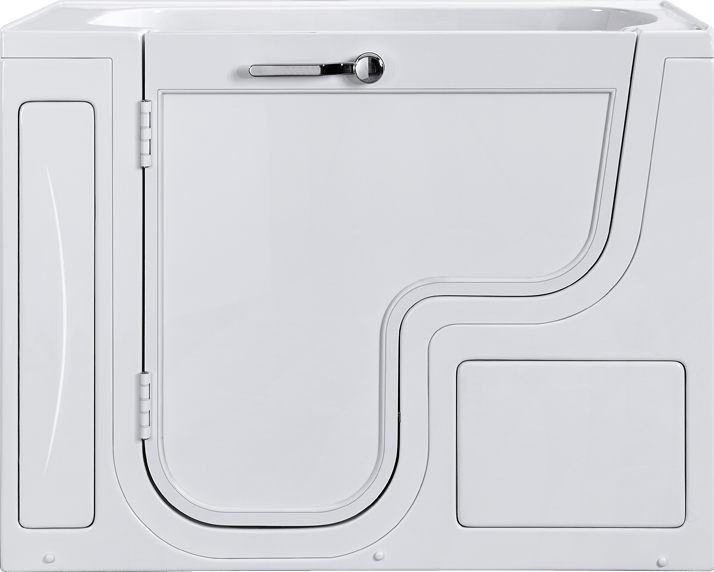

This model is mainly designed for wheelchair user, it's a L shaped door with wide opening which allow the user move to the seat easily.

Products in detail

lBasic information

Ø Size: 29"W×52"L×40"H

740mm x 1320mm x 1010mm

Ø Depth: 890mm(35")

Ø Seat height: 430mm(17")

Ø Door: Left or right hand outward swing door

Ø Major material: Acrylic, fiberglass, stainless steel frame support

Ø Color: White gloss finish

Ø Configuration: Soaking tub, hydro massage, air massage or dual massage

lStandard configuration

ØAluminum door frame, exterior door panel is acrylic sheet and interior door panel is aluminum

ØHigh quality stainless steel frame support and fiberglass reinforcement

ØAnti-slip seat and tub floor

ØThree safety grab bars

ØOverflow protective drain: 2x2" PVC drain

ØFive pieces of fast fill faucet: Cold, hot, diverter, hand mixer and spout

ØRemovable front apron and access panels, easy for maintenance and intial set up

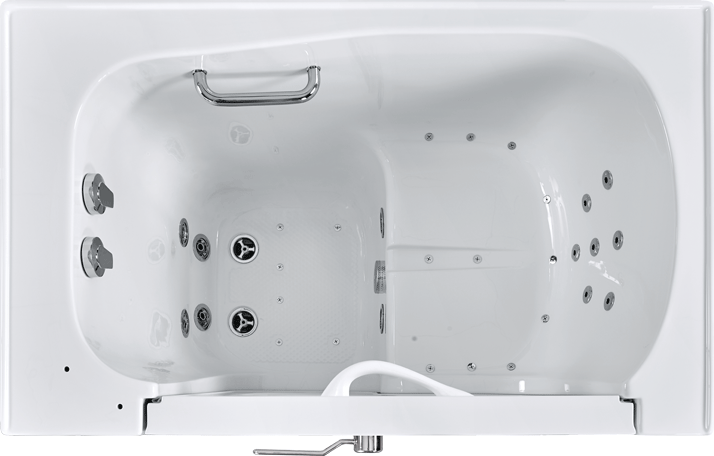

lHydro massage function

ØBack massage: 7ea flat jets

ØCalf massage: 2ea adjustable big jets

ØFoot massage: 4ea adjustable big jets

Ø1.2HP water pump with inline heater

ØAir flow control for adjusting hydro massage pressure

ØAir switch control or digital control system

lAir massage function

ØAir jets: 17ea salt&pepper air jets

Ø400W air pump

ØAir switch control or digital control system

lElectrical

ØPower supply: 2x110V/60Hz or 1x110V/60Hz or 220-240V/50Hz&60Hz

ØDigital electrical topside control panel

ØMultiple color LED light: 10W/12VAC

ØBluetooth: 15W/12VAC or 15W/220VAC

ØHeater:1500W

lWarranty

ØFive year warranty on frame, door and acrylic walk in tub shell

ØThree year warranty on door seal gasket

ØOne year warranty for electrical digital controller
